HM130MAX Woodlander™ Trailer & Sawmill

$7,787.00

Select options above to continue.

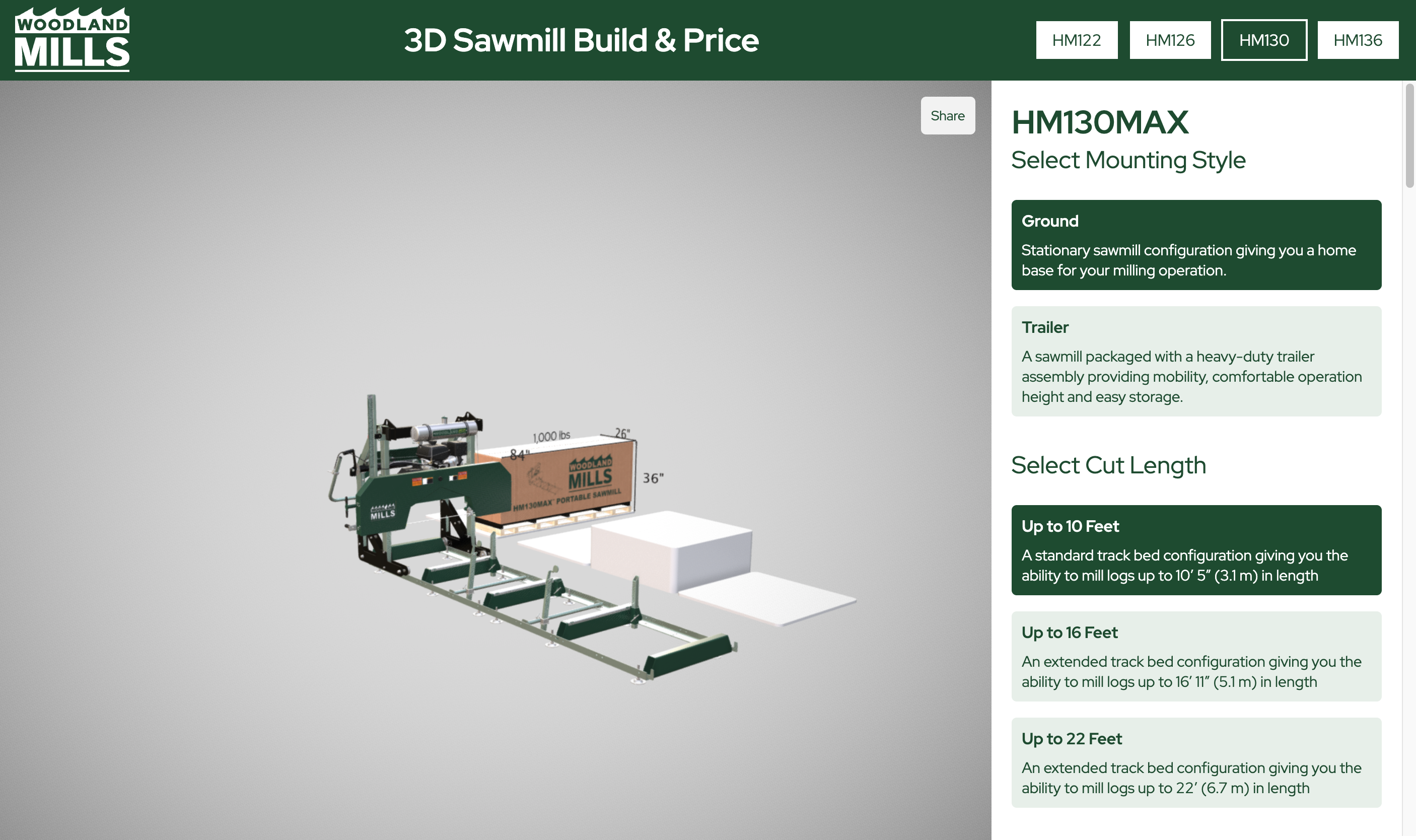

Build & Price

Stock Availability

Available for pickup in:

    The HM130MAX Woodlander™ is a wide capacity mobile sawmill for sawyers looking to create popular live edge slabs. Featuring a 30” (76cm) diameter log capacity matched with a 30” (76cm) throat opening, producing stunning high-value live edge boards. The HM130MAX Woodlander is loaded with new features like our RapidChange™ blade system, auto lube, an operation hour meter, wider cut capability and much more. Packaged with the Woodlander trailer for multi-terrain transportation, comfortable operation height and easy storage.

    MAXIMUM TRAILER LENGTH

    The Woodlander trailer is available in two cut lengths: Standard -10’ 5″ (3.1m) and XL - 16’ 11” (5.1m).
    Additional extensions cannot be added to the XL trailers.

    $399 Flat Rate Shipping

    2 Year Warranty

    Same Price Policy

    RECOMMENDED ACCESSORIES

    Sold out

    Sold out

    Sold out

    Sold out

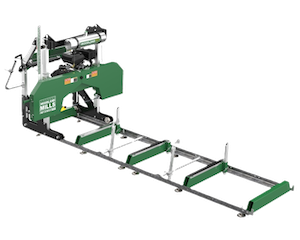

    HM130MAX WOODLANDER™ SAWMILL


    Now you can produce beautiful wide live edge slabs for tabletops, counters, benches and more. The HM130MAX features a 30” (76cm) diameter log capacity matched with a 30” (76cm) throat opening allowing for sawyers to produce wider cuts. Get more horsepower with the included 14HP Kohler gas powered electric start engine. A heavy-duty 4 post head design with reinforced back beam support the serious HM130MAX cutting power. The HM130MAX is loaded with new and innovative features like the automatic blade lubricant system that activates when the throttle is engaged and the RapidChange™ blade system for quick and tool-less blade changes. HM130MAX is designed to be the most affordable and robust wide cut sawmill in the market. Packaged with the Woodlander™ trailer for multi-terrain transportation, comfortable operation height and easy storage.

    WIDE PRECISION CUTTING


    We’ve widened the throat to match the maximum log diameter. This is what gives you the ability to slice right through 30” (76cm) logs without squaring the cant. Cut logs 10’ 5” (3.1m) long with the standard track & trailer configuration. Upgrade to the Woodlander XL and cut logs 16’11” (5.1m) long. Unbelievable cut accuracy and precision lets you cut veneers as thin as 1/16” (2mm). Cut within 1” (25mm) of the deck ensuring you maximize your usable board foot output.

    RIGID TRACK SYSTEM


    The HM130MAX sawmill head rolls along a rigid 2.5″ x 4″ (63mm x 101mm) “L” channel which is cross supported with heavy-duty 3″ x 6″ (76mm x 152mm) rectangle channels. These cross supports ensure the weight of the log is dispersed over a large bearing surface to avoid marking the log with indentation. The cross supports are also covered with a stainless steel cap to prevent certain woods (such as oak) from being stained from contact with painted surfaces. These heavy-duty cross supports also provide additional rigidity to the track system. The track system is mated to the trailer package which features 1/4” (6mm) thick laser cut and bent side plates and tubular cross supports making the two work together to create an extremely rigid chassis. The track allows for 10’ 5” (3.1m) log lengths or upgrade to the Woodlander XL to cut logs up to 16’11” (5.1m) long.

    AUTO LOCKING SAWHEAD


    Super precise and consistent control. Simply push the handle in and rotate through 16 locking locations to move the sawhead up or down. Coupled with an acme lead screw, you’ll get super accurate adjustments within 1/64” accuracy. Traditional magnetic log scale rulers are also included to line up your cuts.

    AUTO LOCKING ADJUSTABLE BLADE GUIDE


    Keep the guides close to the wood being cut and reduce blade wander. The Auto Locking Adjustable Blade Guide is constructed using stainless steel v-rollers and a matched machined aluminum arm making it a premium system over traditional adjustable blade guides.

    GAS & GO OPERATION


    The throttle handle engages the engine RPM, saw blade and auto lube system simultaneously. This system makes the process of cutting lumber quick and efficient and reduces the number of steps required by the operator. The throttle handle position can also be adjusted for comfort depending on track height.

    RAPIDCHANGE™ BLADE SYSTEM


    Exclusive to Woodland Mills is the RapidChange™ blade system. This is a tool-less approach for changing blades quickly and reduces the amount of blade tracking adjustments between blade changes. A stack of Belleville washers act as a shock absorber for the blade while giving consistent blade tension in all temperatures ensuring less stress on your blades.

    THIN KERF BLADES


    The HM130MAX utilizes standard 1.25″ x 158″ x .042″ (32mm x 4013mm x 1mm) Woodmaster hardened tipped blades which are available through Woodland Mills. Maximize the most amount of lumber per log with a blade kerf of just .080” (2mm).

    WOODLANDER™ TRAILER


    Constructed with laser cut bent plates and tubular cross supports, the chassis becomes quite rigid as it unites with the sawmill track system to complete a box style structured chassis. It features a galvanized steel frame, torsion axle suspension system and Department of Transportation (DOT) approved tires. LED light kit (stop, turn, tail, side markers and licence plate light), safety chains and a 2” (50mm) ball receiver also come standard with the trailer. 4 levelling jacks enable quick and stable setup on uneven ground. A sawmill head locking kit (locks the head to the trailer for transport) is included in the trailer package. The Woodlander trailer is available in two lengths. An optional log loading ramp kit is also available for the Woodlander, allowing you to load logs without the need for additional equipment.

    WOODLAND MILLS QUALITY & CUSTOMER SERVICE


    At Woodland Mills, we put our customers first. If you have a question about a product you purchased, you can contact us at 1-855-476-6455. The HM130MAX is backed by a 2-year manufacturer's warranty excluding wearing parts (belts, blades, bearings & cosmetic damage). A 3-year Kohler commercial small engine warranty is honoured through any Kohler small engine dealer.

    LICENSE FOR HIGHWAY USE


    Sold as an off-road package. Road safety components are included to aid in the registration as a home-built trailer in your jurisdiction. Every province, state and country have different requirements and it is recommended to check with your region requirements.

    SHIPPING

    Shipping Weight: 1000 lbs (454 kg)
