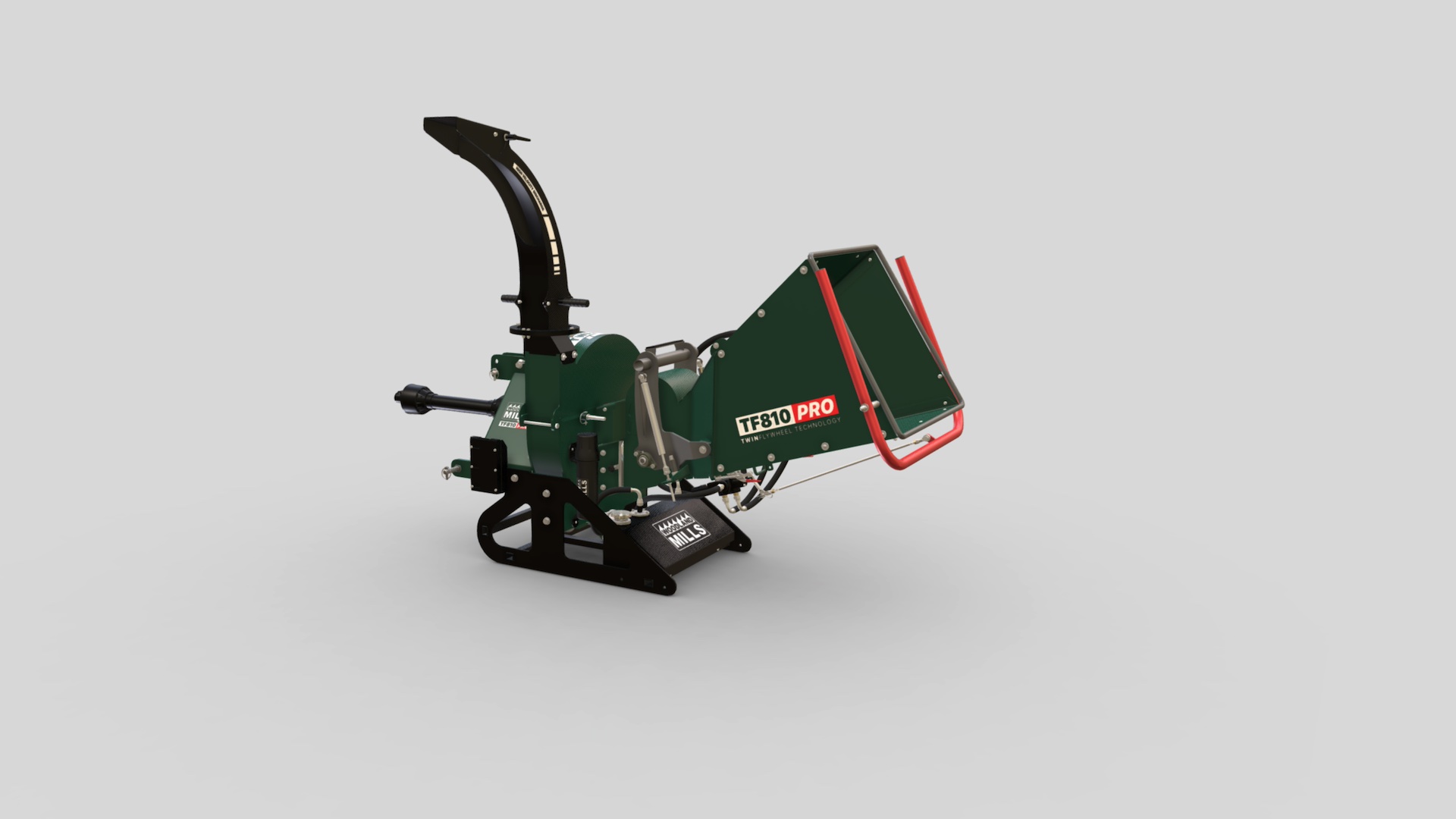

TF810 PRO PTO Wood Chipper

Chipping and throwing are the two primary functions of a wood chipper. With two flywheels, we’ve been able to optimize the speed of each specific function. The chipping flywheel spins at 540 RPM, with high torque for chipping power. That means it can handle bigger materials with less HP. The secondary flywheel spins at 2X the speed, to throw materials out faster and farther. This also significantly increases the air flow, which helps carry difficult lightweight, wet, leafy, and coniferous material smoothly through the chip stream, reducing potential build up.

The TF810 PRO operates on tractors with 35 – 100+ HP at the PTO. It has a large 27” x 29” (69 cm x 74 cm) infeed hopper opening that tapers down to a 8” x 10” (20 cm x 25 cm) opening where the 8” (20 cm) diameter hydraulically driven infeed roller grabs the branches and feeds them through the chipper. Branches as small as ¼” (6 mm) diameter and as large as 8” (20 cm) diameter can be fed through the TF810 PRO.

Branches are pulled into the TF810 PRO via the 8” (20 cm) diameter infeed roller. The roller is hydraulically driven by the chipper's self-contained hydraulic system. The roller is adjustable in direction and speed, making it easy to feed branches of all shapes and sizes. The hydraulic pump is belt driven from the main flywheel shaft.

The infeed system features stainless gas springs that provide more consistent force from the infeed roller, compared to conventional coil springs. In addition to maintaining constant pressure as materials feed through, it also provides a dampening effect when material sizes change, resulting in smoother infeed.

The TF810 chipper utilizes eight high-quality hardened steel reversible chipper blades. These blades are positioned in a segmented pattern around the flywheel which evens out the workload on the chipper and tractor, making the chipper that much more efficient. The blades can also be flipped to take advantage of the two cutting edges on one blade. Each blade is held onto the flywheel with four countersunk M10 bolts and locking nuts. Blades can be changed quickly, thanks to the clamshell flywheel housing design. Simply undo one bolt and the upper flywheel housing rotates open, providing full access to the flywheel and chipper blades.

The chute was designed to discharge 360 degrees by simply rotating it to the desired angle with the two handles. This makes it possible to direct the wood chips in any direction, regardless of the location of the chipper. The end of the chute stands at 66” (1.7 m) off of the ground, making it easy to direct the wood chips into the back of a truck or trailer. Located at the end of the discharge chute is a rotating deflector, which allows further control of the location of the wood chips. Simply point it straight for maximum distance or angle it down to deflect the chips directly down to the ground or into a trailer.

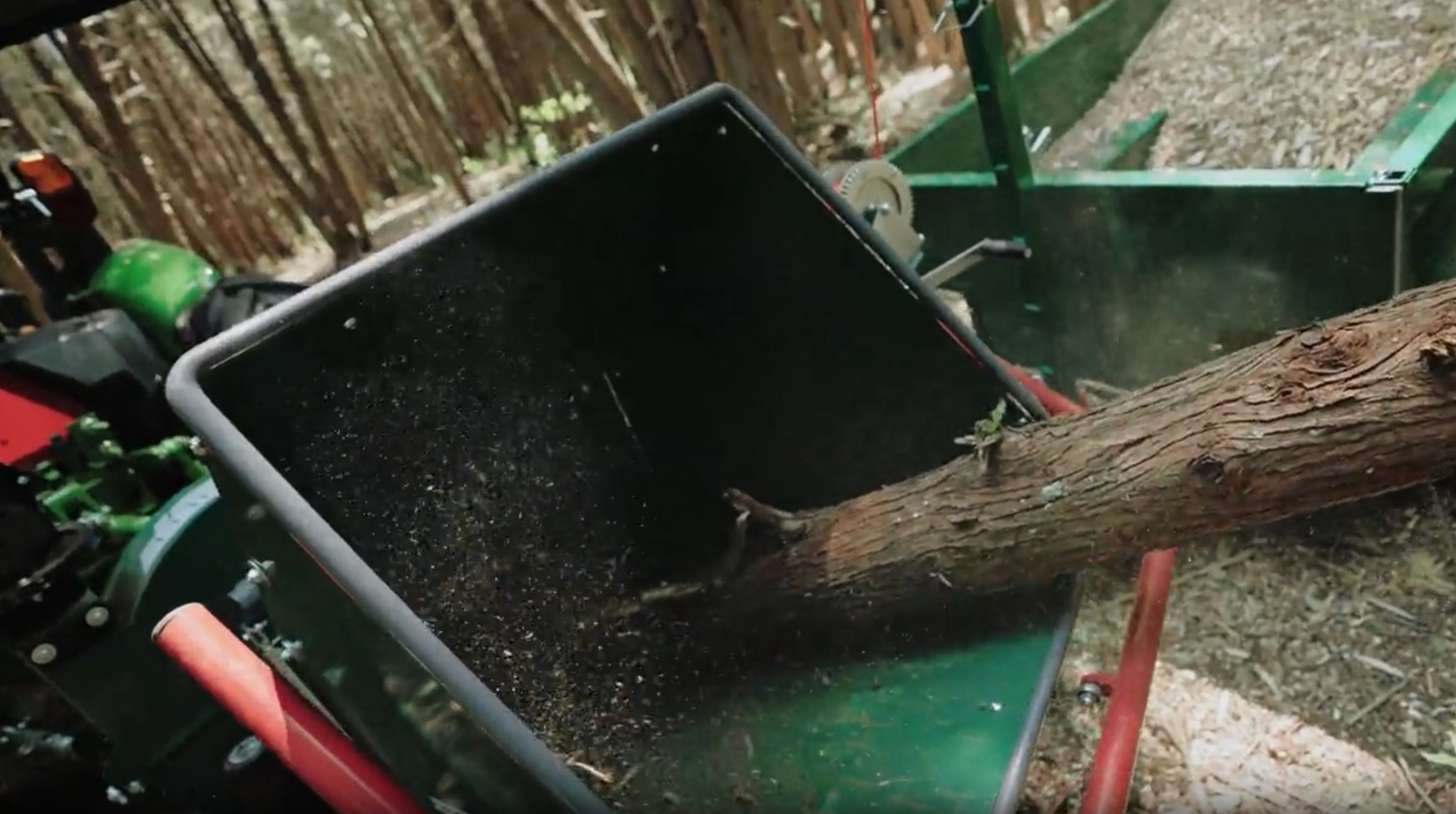

The infeed chute on the TF810 PRO wood chipper has a large 27” x 29” (69 cm x 74 cm) opening, making it easy to feed branches with multiple limbs effortlessly. The infeed chute can also be folded up to decrease the footprint of the chipper during transport or storage.

Included with the TF810 chipper is the PTO shaft, complete with shear pin.
